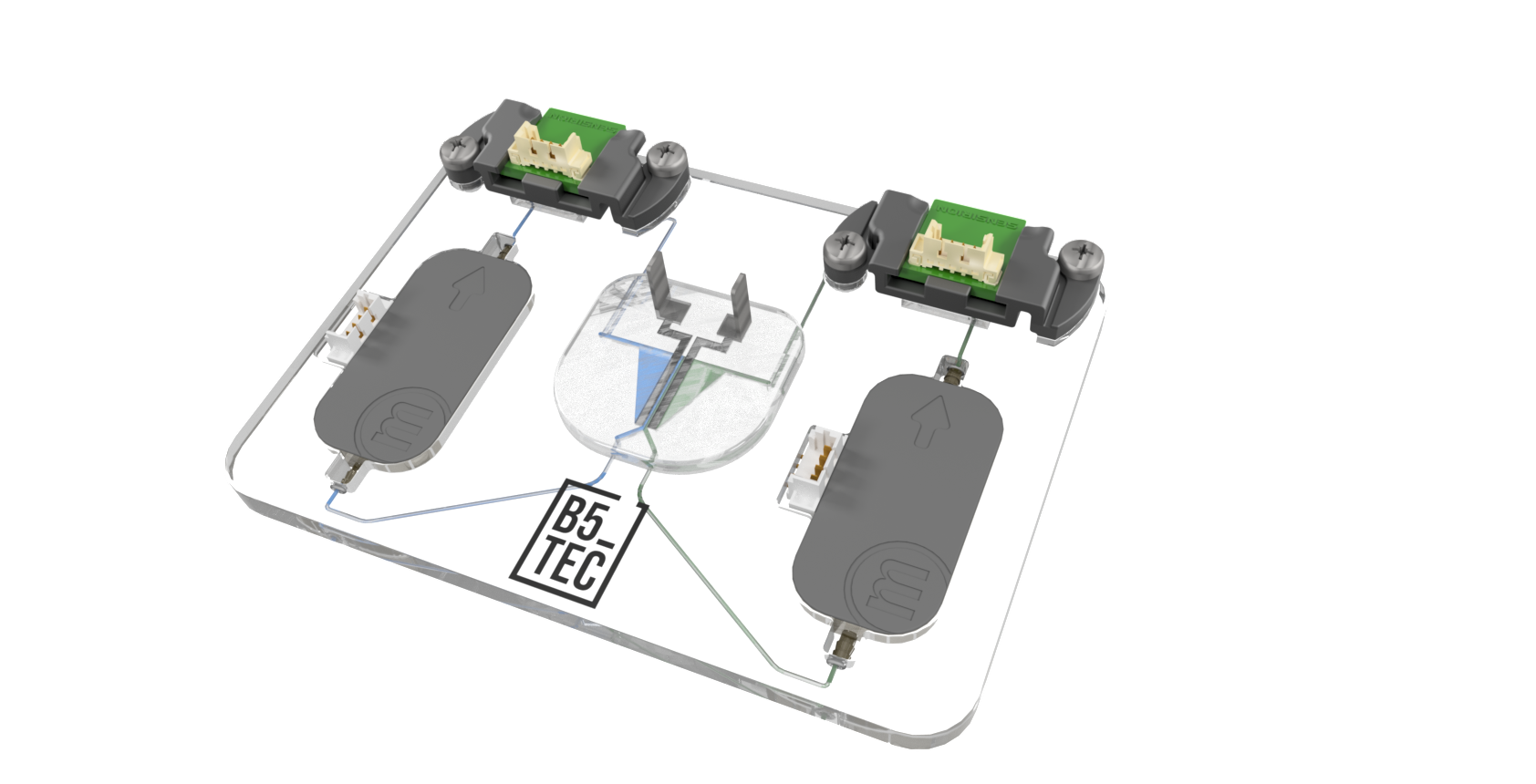

PRESSURE DRIVEN FLOW PUMP (PDF)
Compact and precise solution for pumping fluids through microchannels in controlled manner due to its integrated advanced controller, it does not need a separated compressor or any other accessory to operate, it is a direct plug and play solution for applications that does not require fluid recirculation but require easy substitution of wetted material.
Technical characteristics
Applications
Technical characteristics
| Full H2O Flow Range | 5-1000 uL/min |
| Min Flow Increment | 0.1 uL/min |
| Flow Accuracy | 5% |
| Flow Repeatability | 0.5% |
| Min Pressure Increment | 0.016 bar |
| Supply Voltage | 5 V |
| Supply Current | 0.3A |
| Operating Temperatures | +5 to +50 ºC |
| Operating humidity | 0…95%, non-condensing |
| Response Time | 250 ms |
| Settling Time | 10 s |
| Life Time (Continuous/Total) | 5000h/500000h* |
| Fluidic Connectors Ports (fittings) | UNF 1/4-28 flat-bottom ports for 1/16” or 1/8” OD plastic tubing |
| Wetted Materials | Borosilicate glass, Polyphenylsulfone (PPSU), Polypropylene (PP), 3D-printing biocompatible resin* |
| Sterilization options | Autoclaving, EtO, Radiation (E-Beam or gamma), Alcohol |
| Internal Volume | 300uL |
Applications
